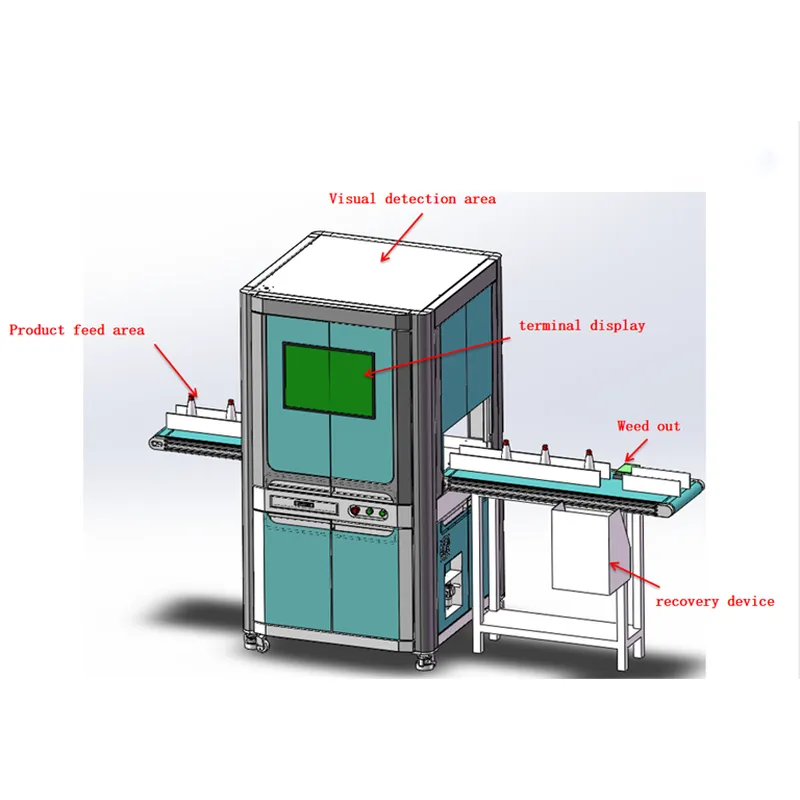

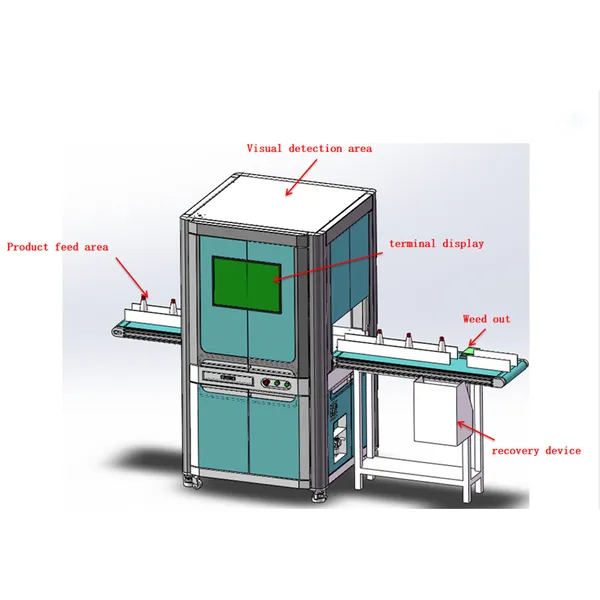

loading mechanism
unloading mechanism,

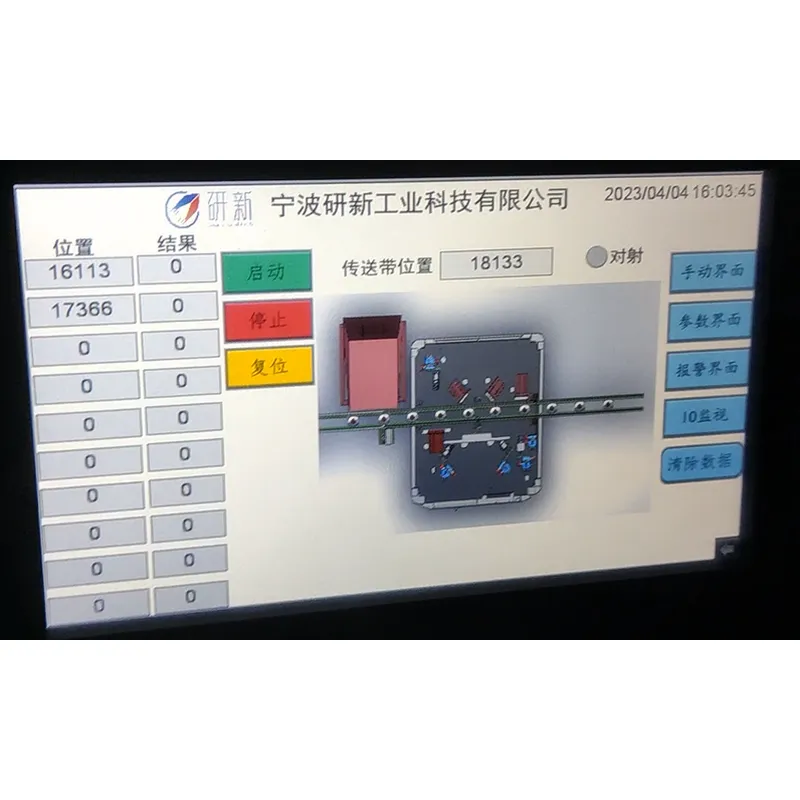

motion control unit,
image acquisition, visual measurement and detection department System
industrial control image processing system

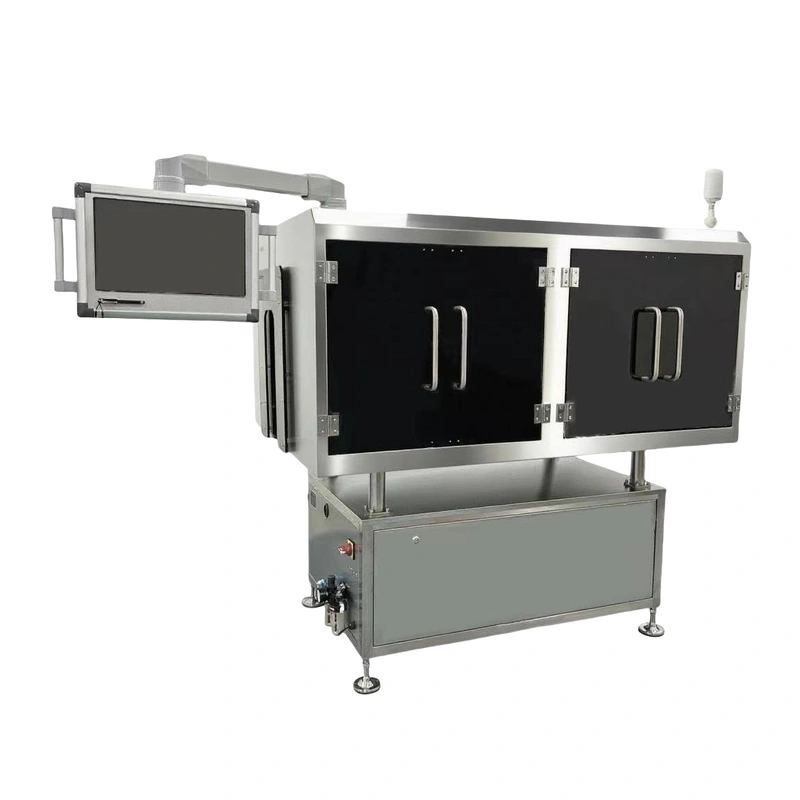

Visual detection system includes:
industrial camera, industrial lens, lighting source, industrial computer, visual detection software (including image processing algorithm), monitor, communication unit, abnormal alarm unit, abnormal removal mechanism, operating cabinet, outer cover and frame, etc.
The visual inspection station is divided into two stations

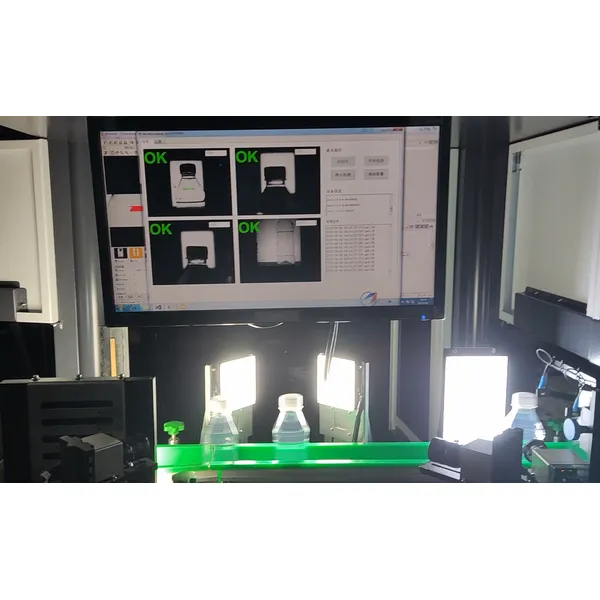

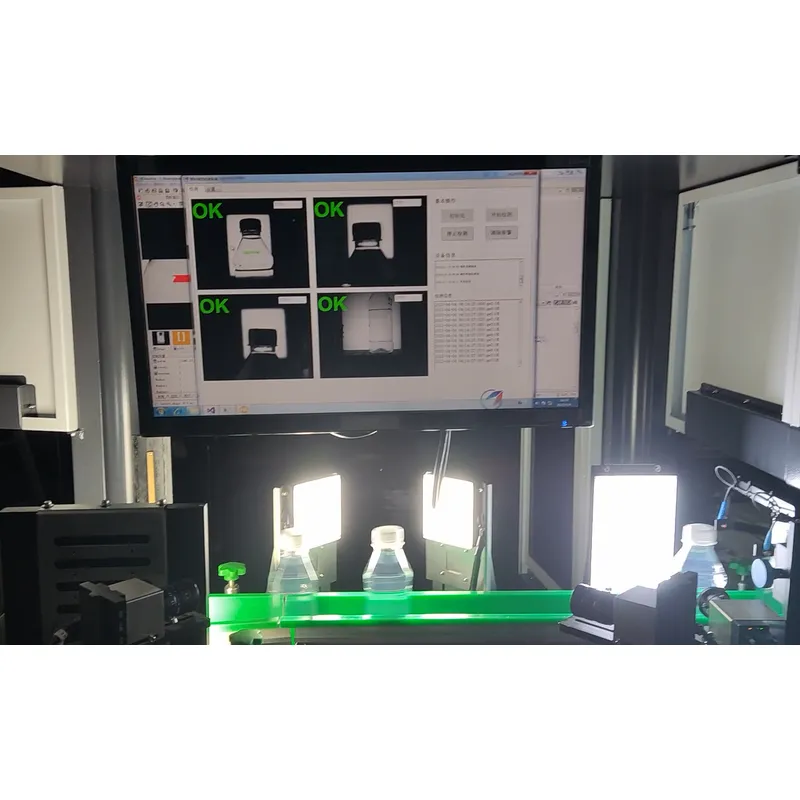

No. 1 inspection station adopts dual cameras to take side-view diagonal photos, and conducts all-round inspection of the glass bottle mouth. The inspection contents include bottle cap quality inspection, bottle cap safety ring inspection, bottle cap color identification, and whether there is a bottle cap.
No. 2 inspection station adopts dual camera wide-angle photography, and the broken glass bottle body, appearance dirty, appearance visible heterochromatic objects,
Empty bottles, pour bottles and other conditions for quality inspection, unqualified products automatically eliminated, easy to edit machine parameters, simple operation.
List subentry configuration name brand amount unit | |||||
1 |
Visual configuration ·
| Industrial camera + Cable | Hikvision | 4 | PCS |
2 | High precision industrial lens | Nenvin | 4 | PCS | |
3 | Optical light source +controller | Nenvin | 4 | PCS | |
4 | Industrial main engine | Advantech | 1 | PCS | |
5 | Indicator | AOC | 1 | PCS | |
6 | Inspection software | Vixdetect VS | 1 | PCS | |
7 |
· Mechanical and electrical motion control ·
| Electrical and motion control systems | Vixdetect | 1 | PCS |
8 | Elimination mechanism | AirTAC | 1 | PCS | |
9 | control cabinet | 304SUS | 1 | PCS | |
10 | Equipment rack + housing | 304SUS+WCB | 1 | PCS | |
11 | Vixdetect | 2 | PCS | ||
***Configuration varies according to production line requirements
